Setting up a new project

From nothing to a running component, by CLI or by preview, and what happens after.

There are four templates. Each one is a whole component: source, a Dockerfile where the language needs one, the OpenChoreo manifests, and the CI wiring.

The golden path. One command creates the Gitea repository, renders the template into it, and pushes the OpenChoreo manifests that make the platform pick it up.

./platform/templates/new-project.sh --template rails-service --name bakery

Options worth knowing:

--template   rails-service | ruby-gem | static-site | zulip-bot
--name       component and repository name, lowercase and dash-separated
--project    the OpenChoreo project that owns it   (default: same as --name)
--owner      the app.openchoreo.dev/owner label
--org        the Gitea organisation
--dry-run    render into a temp directory and stop
note

Start with --dry-run. It renders everything into a temporary directory and creates nothing, so you can read the manifests before any of them reach a cluster.

Before running anything, look at what a template would produce.

Each one shows the OpenChoreo objects it declares, as a graph, with the substitutions already applied for a name you choose.

Browse the templates →
warning

This preview renders the template and stops. It shows the objects the template declares; it does not expand what each of those objects would then become in the cluster. For that, follow a construct through to its What it expands into panel.

The renderer has the same semantics as the CLI's — {{name}}-style substitution, no conditionals, no loops — deliberately, so the preview and the real thing cannot disagree.

A template creates a Gitea repository with the source, and an openchoreo/ directory inside it holding the platform manifests: a Project if it needs one, a Component, and the bindings that place it in environments.

caution

Manifest sync applies whatever the repository holds. A kubectl patch against a Component is reverted by the next push — and it breaks the build that push triggers. Edit apps/<name>/openchoreo/component*.yaml instead.

What happens next, and where to watch it

  1. 1

    The push triggers a build

    A build takes a couple of minutes. The build page shows its stages with cache verdicts, the trace, and per-stage logs.

    Watch the builds →
  2. 2

    Tests report themselves

    If the template's language has a test plugin, every case reports its outcome, duration and failure message, and the build gets a test report of its own.

    Open a build, then its tests →
  3. 3

    It appears in the estate

    Once a binding is Ready, the component shows up as a cell in its project's flow and in the environment view — and from there you can reach its Kubernetes objects.

    Find it on the overview →

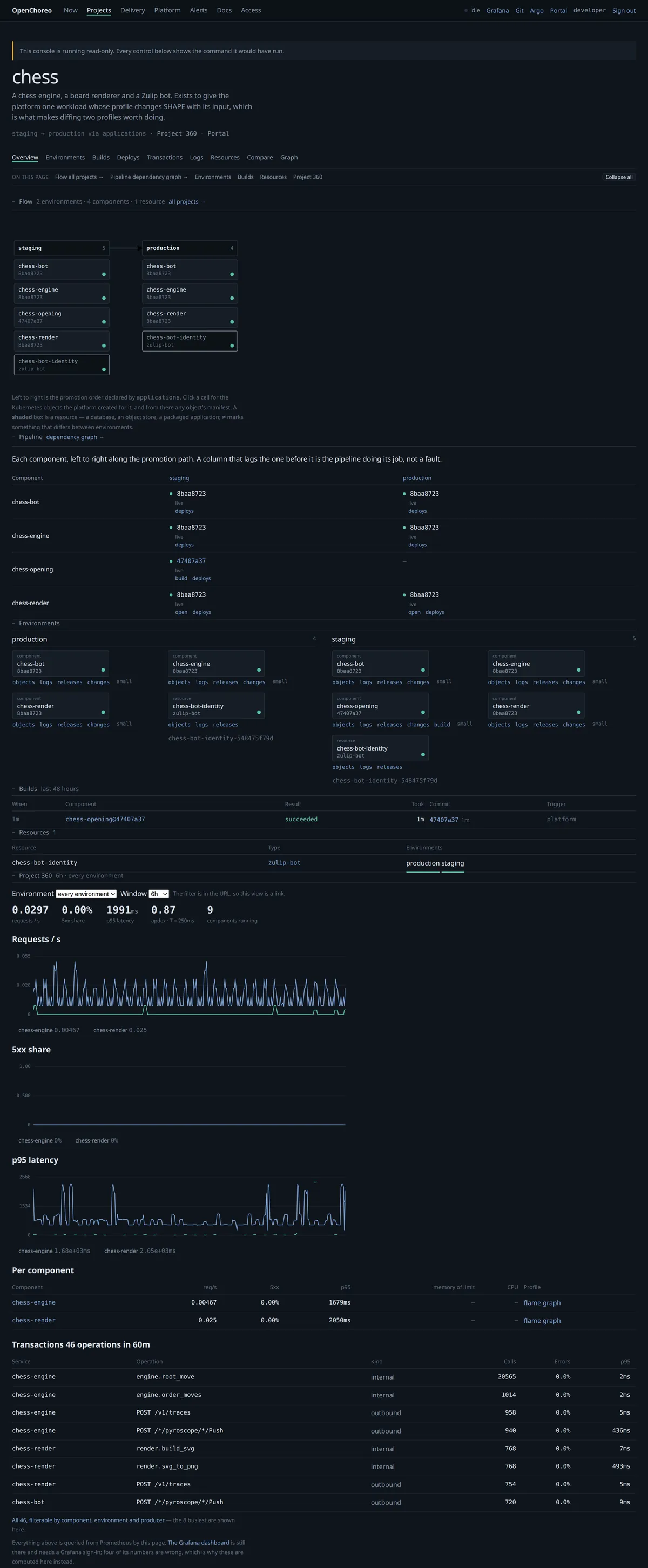

    A newly added project: its flow, its pipeline dependencies, its environments and its Project 360 numbers

  4. 4

    Promotion is a push, not a button press

    Promoting writes the new release into bindings-<environment>.yaml in the platform repository. That means a promotion is one revert away from being undone, and that is the point: the repository is the record.

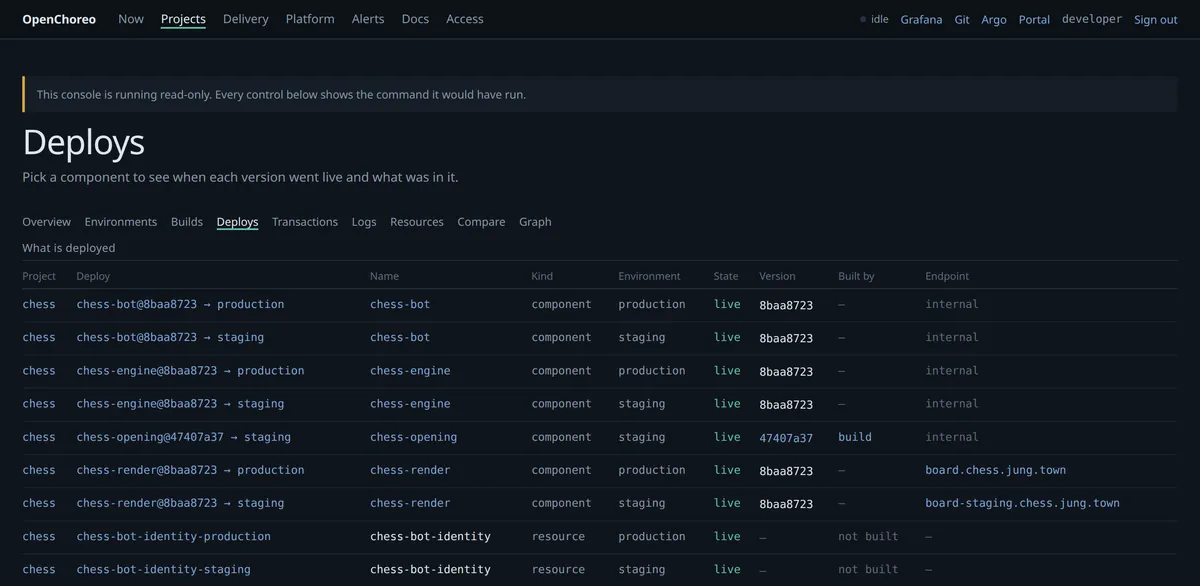

    The same project's deploys: every component live in both environments, with the version each is running

note

Only some environments are synced from the repository. Check which before assuming a promotion will stick — the compare page tells you what each environment is actually pinned to.

See what two environments are pinned to →
